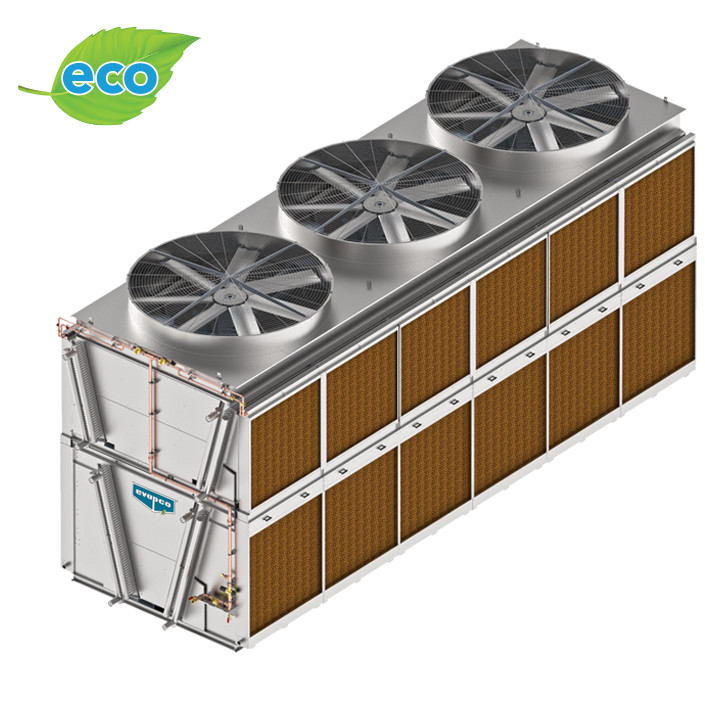

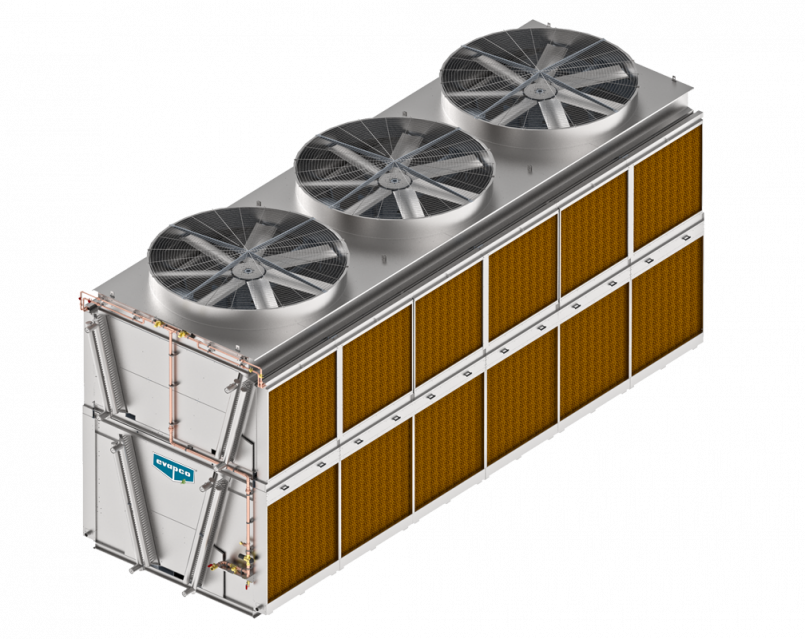

EAW-DA Double Stack Adiabatic Cooler

• Dramatically reduced water consumption
• Ranging in nominal heat rejection capacity from 2,750 MBH to 8,440 MBH
• Type 304L stainless steel tubing as standard
• Heavy gauge aluminum fins as standard
• Simplified maintenance
• AC/NEMA Belt drive

Hot process fluid enters the inlet header connection, shown in red. Heat from the process fluid dissipates through the coil tubes surface and out to the fins. The adiabatic system involves fully wetting a fibrous pad located in front of the coil. Ambient air is drawn through the adiabatic pre-cooling pad by the fans located on top of the unit. The air is humidified as it passes through the adiabatic pad, decreasing the ambient dry bulb temperature within a few degrees of the ambient wet bulb temperature. This new air temperature is referred to as the depressed dry bulb. This pre-cooled air is then drawn through the tube and fin surface, offering a substantial increase in heat rejection capability. Heat from the process fluid transfers to the air and discharged to the atmosphere. Cool process fluid exits the unit through the connections shown in blue.

Adiabatic Pre-Cooling System

• Type 304L SST frames, water distribution trays and drain channels
• High efficiency adiabatic pads, tested & rated in EVAPCO's R&D labs
• 2-stage water distribution system to further reduce water usage
• Components include water pressure regulator, strainer, solenoid valves, pressure gauge and drain valve
• Consult EVAPCO’s IOM for water quality recommendations.

Casing/Structure

• Casing and unit structure including vertical support members and anchoring channels constructed with G-235 galvanized steel as standard
• G-235 construction optional
• Type 304 stainless steel construction optional

Coils

• Constructed with Type 304L stainless steel tubing as standard for superior corrosion resistance and longevity
• Meets ASME B31.5 piping code
• Type 316 stainless steel coil construction optional
• Epoxy coating on fins optional

The eco-Air Double Stack Adiabatic Coolers are provided in Belt Drive configuration with AC/NEMA fan motors.

AC/NEMA Motors

• Belt drive – simple, reliable, easy to replace
• Zero maintenance sealed bearings
• VFD ready
• Severe duty

Electrical

• DPDT vibration switches (optional)
• Individual Safety Switches (optional)

Maintenance Access

• Optional external service platform
• Large-hinged door for drive system access
• Full length internal drive access platform

*Product requirements may vary slightly in different countries and regions around the world，the product information on this website is provided for reference only. Please consult EVAPCO representative in your country/region or EVAPCO company.
